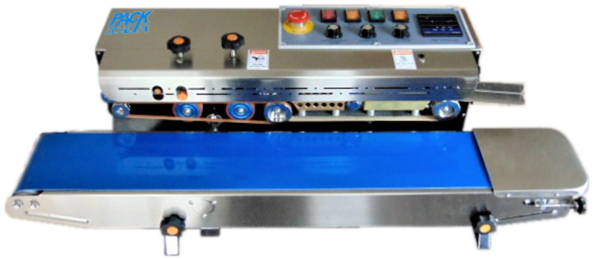

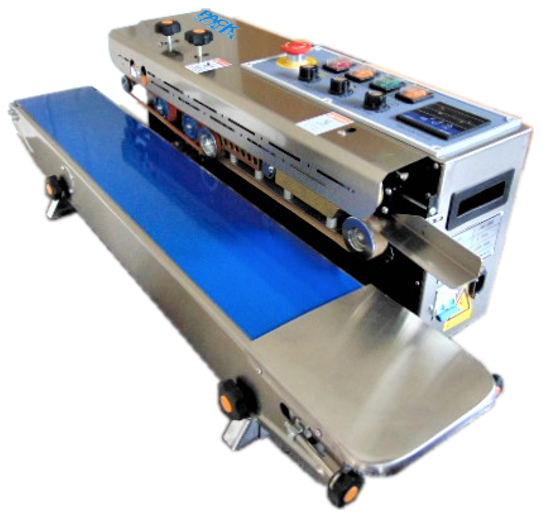

FCBS730 Continuous Band Sealer Horizontal / Vertical

Description

The FCBS730 is a Table top  horizontal / vertical Continuous Band Sealer. Pre-made bags are sealed lying down or standing .   The sealing unit can be adjusted to suit different sized packages.

Dual-orientation Continuous Band Sealer system includes vertical and horizontal conversion kits (Can be used both as a horizontal and as a vertical Band Sealer).
Conveyor height from conveyor to center of sealing belt (at vertical configuration): 100 to 330 mm (4 inches to 13 inches)

All-in-one continuous high-speed bag sealing system.

Bag Sealer, Industrial Bag Sealer, Continuous Band Sealer.

Features

Digital Control

For maximum bag height sizes 13″ (330mm)

12mm Wide seal

Vertical and horizontal operation.

Fitted with a hot ink coder, using hot ink rolls

Equipped with PID digital temperature controller, for bag materials that require very precise sealing parameters.

PID Digital Temperature Controller: 0 – 300°C (572°F) with dual alphanumeric displays, (target & current temperature).

Stainless Steel construction.

Convertible to horizontal and to vertical operation so that you can seal bags that are standing and bags that are laying on their side..

Makes strong, professional-looking airtight seals like those made by costly high-speed automatic systems.

Seals thermoplastic materials including Polyethylene (PE),

Polypropylene (PP), BoPET (ie. Mylar), and heat-sealable laminations and cellulose (ie. Cellophane).

Capable of speeds of up to 16 m/min, depending on product / bag seal characteristics.

Includes motorized belt conveyor with synchronized speed adjustment.

All spares are carried in stock.

Extremely easy to use

Non-stick woven PTFE-type guide belts.

Equipped with electronic adjustable speed control.
Adjustable 2-Way pulley system for optimal bag stability and embossing clarity.
Equipped with bag entry guide for easy bag feeding and straight seals for easy loading.
Extended forced-air cooling system with extra-wide cooling bars and 6 heat transfer orifices.
Knurled pressure rollers with variable pressure adjustment.
Sealing method: constant heat.
Single pair of bronze sealing bars.

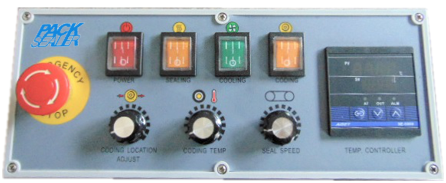

Control panel includes E-Stop industrial meaning a quick-stop switch.
Ideal for the food sector because this sealer has a rust-inhibiting Stainless Steel construction.

Dual-orientation system includes vertical and horizontal conversion kits (Can be used both as a horizontal and as a vertical Band Sealer).

Dimensions

• Extra wide 12mm seal.
• Bag height range: 4 – 13 inches (100 – 330 mm H) when in vertical position
• Conveyor Width 6 inches.
• Conveyor height from conveyor to centre of sealing belt (at vertical configuration): 100 to 320 mm (4 inches to 13 inches)
• PID Digital Temperature Controller: 0 – 300°C (572°F) with dual alphanumeric displays (target & current temperature)
• Electrical: Supplied in 220v.
• Machine power: 650 Watts10 amp protection power surge breaker.
• Machine Size: 940mm L x 450mm W x 550mm H.
• Boxed Size: 965mm (38 inches) L x 521mm (20.5 inches) W x 419mm (16.5 inches) H.
• Machine Weight: 60 lbs (27Kg).
• Boxed Weight: 76 lbs (35Kg)

Other Specifications:

• Fast Warm-Up Time.
• Simple to Use – Minimal Operator Training.
• Use hot ink rolls
• All spares are carried in stock.

Brand

PackSealer

Since the year 2000 Packsealer has offered an enormous range of heat sealers, vacuum sealers, rotary band sealers, and packaging equipment the Pack Sealer branded machines are a cost effective alternative to the European manufactured equipment. PackSealer heat sealers; impulse heat sealer, direct or constant heat sealers and band sealers plus all the necessary spare parts to maintain these sealers. The impulse sealers include the simple manually operated hand sealers and foot sealers where the jaws are closed manually so are suited for low volume applications and automatic foot switch operated sealers for medium volume applications.  The foot pedal and foot switch are also available as double heated elements for heavy duty bags and the vertical sealer is great for sealing liquids and large heavy sacks. For high volume the rotary band sealers are the Pack Sealer machines that should be considered. All these are manufactured in stainless steel and are a fraction of the Audion prices. Spare parts are stocked; element wires, Teflon (PTFE), silicon pressure pads, cutter blades and fuses.
