600mm Automatic Double Foot Pedal Sealer

Description

Size: 600mm Length x 5mm Double Seal width for heavy duty and foil based laminates.

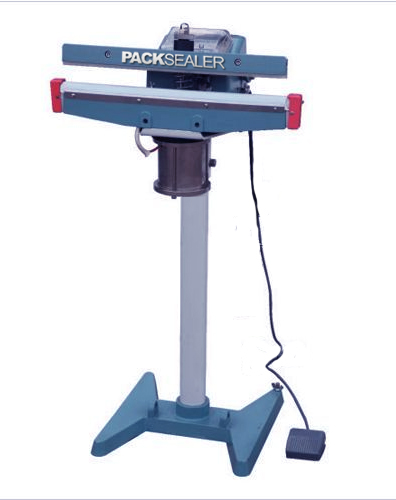

Pedestal mounted Automatic Double Foot Pedal Sealer with foot switch, working height 870mm.  The pillar can be shortened for mounting on a bench top.

Foot Switch Sealers provide a faster hands free sealing operation. Supplied with stand, pedestal, adjustable worktable and spare element.

All heat sealers from PackSealer are built to the high specification and incorporate an adjustable timer control to suit a wide variety of films from 2 x 100μ (2 x 400 gauge) to150µ to 250µ (600 to 1000 gauge).

This sealer has a heating element on both the top and bottom jaws which makes these sealers suitable for thicker material or for bags with side gussets.  and some foil pouches or bags.

Approximately up to 10 packages can be sealed per minute. In automatic mode the sealer will close at pre-set intervals without the need to press the foot switch.

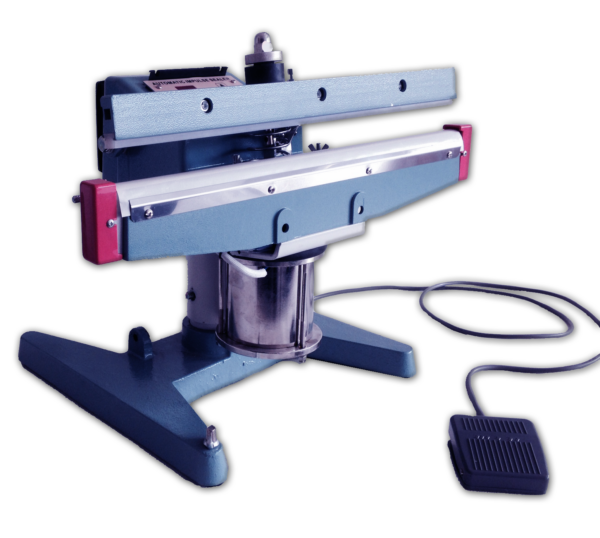

This sealer can be easily converted into a bench sealer buy purchasing a short stand tube.

Power 2000w, Weight 35kg

Important note.

A spike in electrical demand can be created for a fraction of a second because of the initial load of the jaws closing and the heat being applied. Resulting in the electrical breaker tripping.

This type of spike is common with motors when they start up therefore we recommend that a C type breaker is installed (commonly called motor rated) which accommodate the spike. Alternatively  a B32 type breaker.

In conclusion a B type breaker may trip when the voltage goes over the limit for 100 milliseconds and the C type work on a longer time period before they trip. For example this heat sealer can go over the 20amp (B20) for more than 3 milliseconds but not over the 32 amp (B32).

More information about Circuit Breakers

Brand

PackSealer

Since the year 2000 Packsealer has offered an enormous range of heat sealers, vacuum sealers, rotary band sealers, and packaging equipment the Pack Sealer branded machines are a cost effective alternative to the European manufactured equipment. PackSealer heat sealers; impulse heat sealer, direct or constant heat sealers and band sealers plus all the necessary spare parts to maintain these sealers. The impulse sealers include the simple manually operated hand sealers and foot sealers where the jaws are closed manually so are suited for low volume applications and automatic foot switch operated sealers for medium volume applications.  The foot pedal and foot switch are also available as double heated elements for heavy duty bags and the vertical sealer is great for sealing liquids and large heavy sacks. For high volume the rotary band sealers are the Pack Sealer machines that should be considered. All these are manufactured in stainless steel and are a fraction of the Audion prices. Spare parts are stocked; element wires, Teflon (PTFE), silicon pressure pads, cutter blades and fuses.
