Description

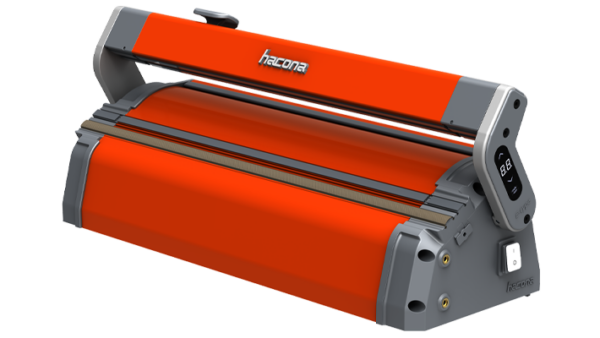

Durable, Heavy Duty Industrial Professional Heat Sealer .
Optimax Professional Heat Sealer offering motorised sealing with the Adaptive Sealing Cycle Control (ASCC). In 620mm wide option with 5mm seal.
Motorised Sealing Bar with Integral Slitter
The sealing head closes electrically and automatically opens at the end of the sealing and cooling cycle to ensure optimum seal quality. The integral slitter neatly separates the sealed film and creates a new leading edge on the film roll.

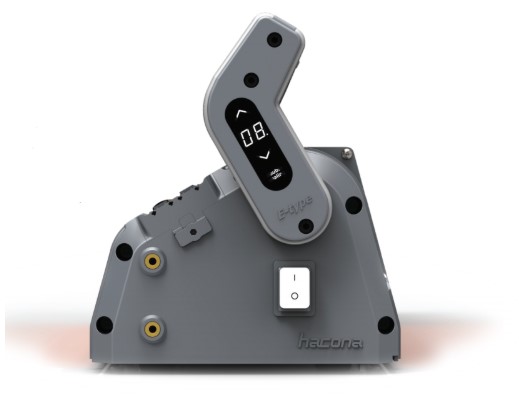

Digital Temperature & Time Control
Precise adjustment gives more flexible regulation of seal quality and minimises energy consumption.
Adaptive Sealing Cycle Control (ASCC)
An innovative feature that automatically adjusts sealing and cooling times to suit the working cycle speed. This prevents overheating of sealing wires during extended, high-frequency use.
Useable for closing and producing pouches and bags
Precise and energy-efficient high speed impulse heat sealer.
SPECIFICATIONS
- Powder coated aluminium extruded body and seal bar for greater rigidity
- Digitally adjustable temperature and sealing time
- Adaptive Sealing Cycle Control (ASCC) auto adjusts sealing and cooling times to suit usage patterns
- Motorised sealing head activated by electric foot pedal
- Sealing wire tensioning unit maintains constant seal width
- Integral safety film cutter to trim excess film from sealed edge
- Seal width 5.0mm
- Seal length 600mm
- Maximum film width and cutting length 600mm
- Power supply 230V 50Hz
- Power consumption 900W
- IP33 as Standard
- Heat and Cool cycle settings
- Sealer settings can be locked to prevent tampering
- Dimensions (L x W x H) 800 x 215 x 190mm
- Weight 22kg
OE620 – 600mm with cutter
Options:
- Adjustable Work Table and Bag Support
- Stand
Brand
Optimax
Additional information
Weight | 30 kg |
---|---|
Seal Length | |
Sealer Type | |
Seal Width | |
Bag Material | Light Duty Thermoplastic, Medium Duty Thermoplastic, Metalised Laminate |
Capacity | |
Feature |
