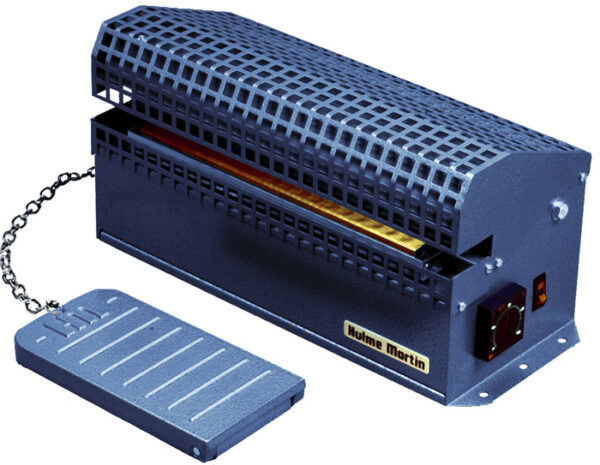

HM 305 CTD Twin Element Laminate Crimp Sealer

Description

HM 305 CTD Twin Element Laminate Crimp Sealer

For high-integrity crimp seals on cellophane, heavy duty barrier foils, coated papers and other laminates.  Ideal for foil coffee pouches. Both the upper and lower jaws are heated for use with heavier materials or gusseted bags. The machine’s temperature is electronically controlled, with a thermal fuse fitted for excess temperature protection, this allows for consistent and easy temperature selection up to 180°C, which is lockable to prevent user intervention. The CTD Crimp Sealer model also includes a digital controller with readout of the actual and the set temperature.
click here for spec sheet

Hulme Martin Sealers are supplier directly from Hulme Martin.  The price indicated may vary dependent on the specific requirements.

Maximum Sealing Length 30mm (12INS)

Seal Width 12mm crimp

Voltage 240 Volts, 110 Volt conversion

Power Consumption 460 Watts

Fuse Rating T3.15 amp

Footprint 450mm (L) x 180mm (W) x 215mm (H)

Weight 12 Kgs

Operation Foot operated via chain and pedal

Mounting Bench mounted or optional stand kit

Options Stand kit

Brand

Hulme Martin

Hulme Martin Heat Sealers UK Manufactured High Quality heat sealers. Please note that Hulme Martin UK Heat Sealers may have to be made to order and are not stocked by PACKSEALER. With over 60 years experience in manufacturing Sealing machines Hulme Martin offer UK Heat Sealers, Impulse Sealers, Bag Sealers, Sack Sealers, Vacuum Sealers, Stand Up Pouch Sealers, Tube Sealers and many more. Hulme Martin industrial impulse sealers are easy to service with heater bar assemblies and rubber pressure pads that can simply be 'unplugged or press fitted to ensure maintenance time minimised. Consumable spares are kept at a low cost to ensure customers do not have large servicing bills. The constant heat crimp sealer is used throughout the world due to its ease of operation and reliability. Bag sealers are manufactured from steel with a stove hammer finish providing excellent durability. Dual electronic timers ensure reliable sealing and ease of use. Industrial plastic bag heat sealers offer a good return on investment. Please check with PACKSEALER for delivery information prior to ordering.
