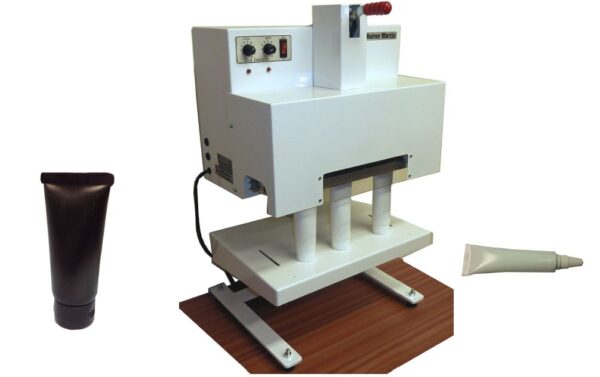

Stand Up Pouch and Tube Sealer

Description

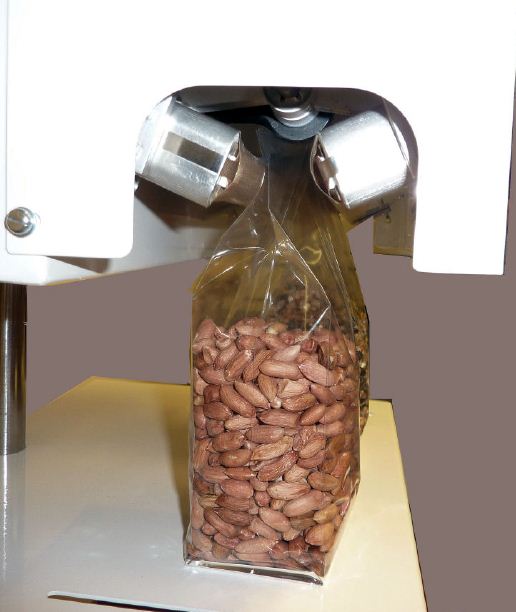

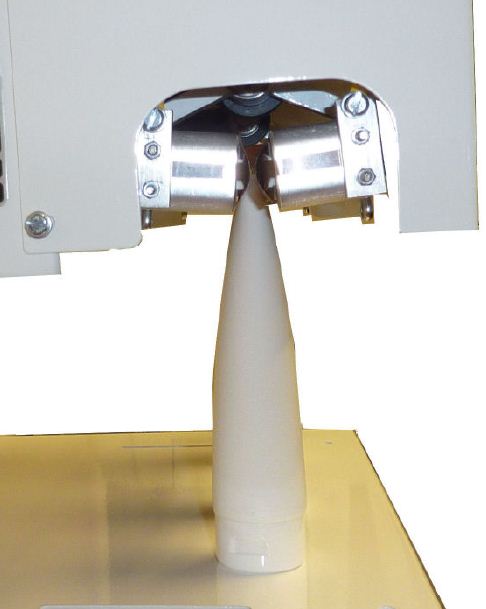

This impulse tube sealer has been designed to stand up pouches and tubes. It is fitted with a dual electronic timer for control over both the heat and cool cycles. The operation lever locks into position while the welding cycle takes place leaving the operator free to load the next bag to improve productivity. Both of the jaws move simultaneously to ensure the jaws close around the bag without distortion. Each jaw is fitted with a 6mm element, applying the heat from both sides of the bag to ensure a high quality seal, on laminated pouches and Tubes.

Tube holders can be manufactured so several tubes can be welded at the same time. The height of the sealing jaws is adjusted with 2 tri-screws on the back of the machine so the machine slides along the H-Frame upright for infinite adjustment. Larger H-frame stands can be manufactured to meet your requirements.

Hulme Martin Tube Sealer Tube Holder | PackSealer

• Sealing Length 320mm
• Seal Width 6mm Double Heat
• Film sealable 250mu PE, Aluminium laminated pouches, most heat sealable materials
• Voltage 240Volts, 110V conversion
• Power Consumption 50W standing 800W heating cycle
• Fuse Rating 3.15A Mains – 16A Elements
• Foot Print 390mm x 33mmm x 620mm high
• Weight 18Kg
• Operation Hand Operated with hold down handle
• Mounting Stands on a bench
• Finish Mild Steel with High Gloss white powder coat
• Adjustable Shelf Optional
• Jaw opening 25mm
• Max Bag height 350mm
• Max bag height with shelf 250mm

Optional adjustable support shelf – recommended with the tube holder.

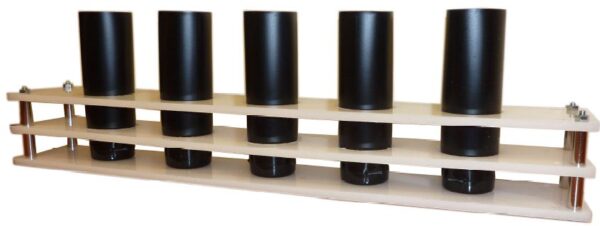

And optional tube holder which can be made to suit the size of your tubes allowing up to 6 tubes to be sealed in one operation.
Hulme Martin Tube Sealer Tube Holder | PackSealer

https://youtu.be/RgQUUVI18Ds

Please Contact PackSealer for stock and delivery, this sealer is not available for collection from our Solihull warehouse.

Brand

Hulme Martin

Hulme Martin Heat Sealers UK Manufactured High Quality heat sealers. Please note that Hulme Martin UK Heat Sealers may have to be made to order and are not stocked by PACKSEALER. With over 60 years experience in manufacturing Sealing machines Hulme Martin offer UK Heat Sealers, Impulse Sealers, Bag Sealers, Sack Sealers, Vacuum Sealers, Stand Up Pouch Sealers, Tube Sealers and many more. Hulme Martin industrial impulse sealers are easy to service with heater bar assemblies and rubber pressure pads that can simply be 'unplugged or press fitted to ensure maintenance time minimised. Consumable spares are kept at a low cost to ensure customers do not have large servicing bills. The constant heat crimp sealer is used throughout the world due to its ease of operation and reliability. Bag sealers are manufactured from steel with a stove hammer finish providing excellent durability. Dual electronic timers ensure reliable sealing and ease of use. Industrial plastic bag heat sealers offer a good return on investment. Please check with PACKSEALER for delivery information prior to ordering.
