Audion Horizontal Continuous Sealer AD552AH
£8,979.60 inc VAT (£7,483.00 ex VAT)
- Description
- Brand
- Additional information
Description

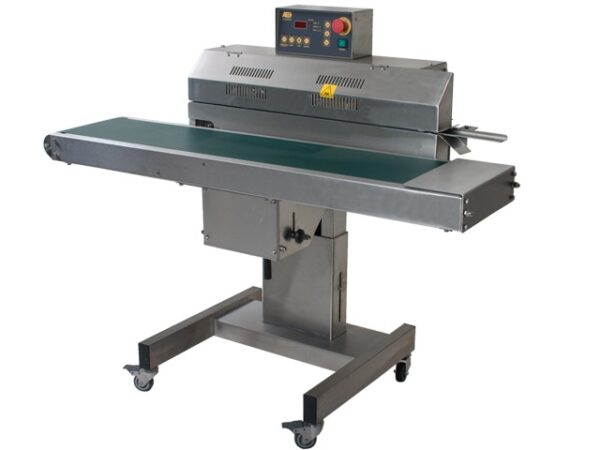

AD 552 AH band sealer continuously seals bags lying flat, for applications requiring speed and convenience. The sealing unit is adjustable in height and can also be tilted up to 30degrees to keep free flowing products in the bag. The conveyor unit can also be adjusted in height by 35mm separately from the sealing unit. For longer product, the conveyor frame can be pulled out by 70mm. The new conveyor belt is attached with rubber guide on the inside and it runs along the groove made on the conveyor frame. This structure keeps the belt always in the center position therefore the adjustment is not necessary anymore. All operating parameters are controlled by a digital control panel, including an automatic cool down function. By using PTFE seal belts; polyethylene, polypropylene, cellophane, paper, aluminium and other laminates can be sealed. The maximum distance between the seal and the top of the bag is 35 mm.
Options: Code seal, stainless steel construction (AD 552 HS)
Technical information AD 552 AH/ AHS
Seal width 10 mm
Operation speed  Variable up to 10 metre per minute
Conveyor belt width  250 mm
Conveyor belt height adjustable range 35 mm
Conveyor belt horizontal position 70 mm adjustable
Power  1100 Watt
Voltage  230 V
Dimensions  1350 x 610 x 1030-1230 mm
Weight of machine   95 Kg
Please confirm shipping costs and delivery timing with PackSealer.
Brand
Audion
Audion Packaging Machines are high quality European made packaging machines with a worldwide service network.
With Audion you have a choice of packaging machines that meet your production requirements. The extensive range of machines covers a large packaging need. Audion Elektro specialise in design and development and manufacture of packaging machinery for the high-end packaging industry. Audion Packaging Machines are sold worldwide and pack everything; from medical, industrial parts to food. Audion Elektro manufacture high quality products for every market, from industrial to retail, standard or custom made, Audion develop a solution for your packaging challenges. Not only for today, but also for the future.Audion Packing Machines:
- Table top heat sealers
- Medical / pharmaceutical / high tech packaging
- Vacuum packing
- Automatic packaging
- Shrink packaging
- Rotary / Band sealers
- Tray sealers
- Packaging material – Consumables
- Packaging machines for E-commerce
Additional information
| Weight | 100 kg |
|---|---|
| Bag Material | Cellophane, Craft Laminate, Foil Laminate, Heavy Duty Thermoplastic, Light Duty Thermoplastic, Medium Duty Thermoplastic, Metalised Laminate, Side Gusset |
| Capacity | High (up to 2500 seals/day), Low (up to 500 seals/day), Medium (up to 1000 seals/day), Very High (more than 2500 seals/day) |
| Feature | |
| Seal Length | 0 to 250mm, 300mm – 450mm, 400mm – 600mm, 550mm – 800mm, 750mm – 1000mm, 1000mm + |
| Seal Width | |
| Sealer Type |
