Heavy Duty Stainless Steel Horizontal Continuous Sealer

Description

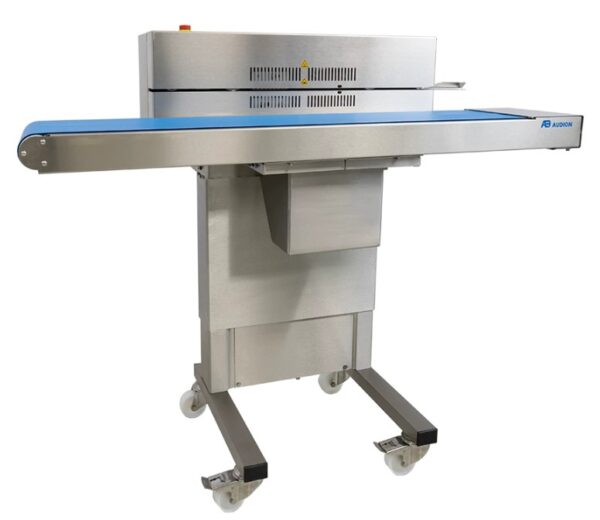

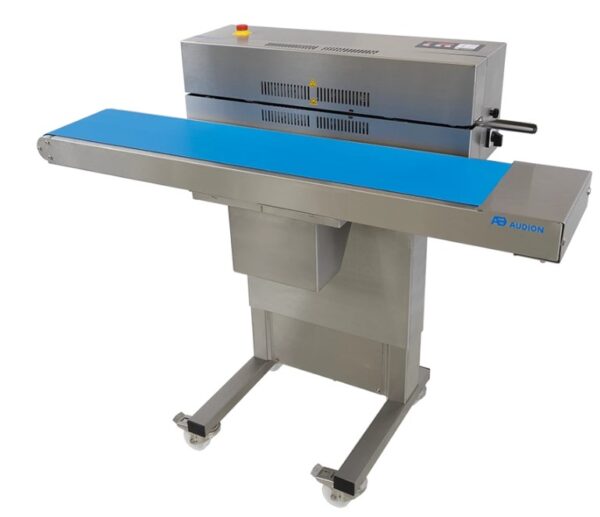

AD552 AHS Horizontal Continuous Sealer continuously seals bags lying flat, for applications requiring speed and convenience.

Free flowing products can be kept in the bag by adjusting the height and tilting the sealer head by up to 30degrees. The conveyor unit can also be adjusted in height by 35mm separately from the sealing unit. For longer product, the conveyor frame can be pulled out by 70mm.

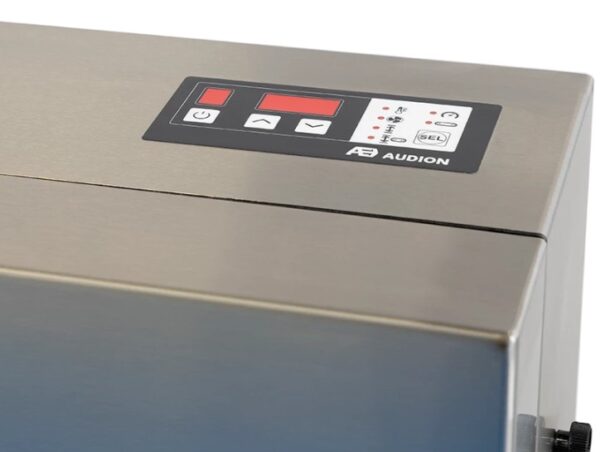

The new conveyor belt is attached with rubber guide on the inside and it runs along the groove made on the conveyor frame, with product infeed from right to left. This structure keeps the belt always in the centre position therefore the adjustment is not necessary anymore. All operating parameters are controlled by a digital control panel, including an automatic cool down function. Polyethylene, polypropylene, cellophane, paper, aluminium and other laminates can be sealed because of the PTFE belts. The maximum distance between the seal and the top of the bag is 35 mm.

Options:

Code seal

Technical information
AD552AHS Horizontal Continuous Sealer

• Seal width 10 mm
• Stainless Steel finish: Clean and durable, preferred in food and pharmaceutical industries
• Operation speed  Variable up to 10 metre per minute
• Conveyor belt width  250 mm
• Height of conveyor belt adjustable range 35 mm
• Conveyor belt horizontal position 70 mm adjustable
• Power  1100 Watt
• Voltage  230 V
• Dimensions  1350 x 610 x 1030-1230 mm
• Weight of machine   95 Kg

Continuous Band Sealers improve the speed of sealing and there’s these are most suited to higher volumes.  The speed is normally limited to the speed at which an operator can load the bag into the machine.  With adjustable speed and temperature the best setup can be created to suit your bag type.

Please confirm shipping costs and delivery timing with PackSealer.

Brand

Audion

Audion Packaging Machines are high quality European made packaging machines with a worldwide service network.

With Audion you have a choice of packaging machines that meet your production requirements. The extensive range of machines covers a large packaging need. Audion Elektro specialise in design and development and manufacture of packaging machinery for the high-end packaging industry. Audion Packaging Machines are sold worldwide and pack everything; from medical, industrial parts to food. Audion Elektro manufacture high quality products for every market, from industrial to retail, standard or custom made, Audion develop a solution for your packaging challenges. Not only for today, but also for the future.

Audion Packing Machines:

• Table top heat sealers
• Medical / pharmaceutical / high tech packaging
• Vacuum packing
• Automatic packaging
• Shrink packaging
• Rotary / Band sealers
• Tray sealers
• Packaging material – Consumables
• Packaging machines for E-commerce

As well as producing standard machines, Audion are happy to provide bespoke models where required.
