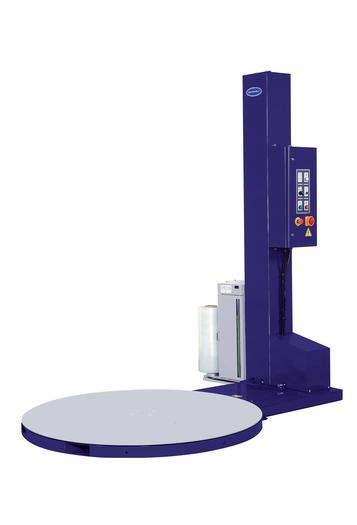

Pallet Wrapping Turntable with Fixed Power Pre-stretch – Optimax®- OPSW004

Description

 Pallet Wrapping Turntable with Fixed Power Pre-stretch – Optimax®- OPSW004

• Powered pre-stretch extends film length to 200% for more secure wrapping and reduced film use
• Single start/stop turntable position and magnetic brake for easy loading/offloading
• 180 degree rotating electronic control panel
• Fully programmable wrapping configuration
• Soft start and stop functions
• Advanced soft wrapping regulates the film tension as the pallet rotates to avoid over-tensioning on corners which can cause carton damage
• Mid-cycle reinforcement function enables greater strength at required points
• Top cover pause function allows insertion of separate top cover before wrapping resumes
• Automatic film cut-off
• Optional loading ramp (PSWR-2) for pallet trucks
• Turntable height 82mm
• Turntable diameter 1500mm
• Maximum loading weight 1650kg
• Maximum wrapping width/length 1050 x 1050mm
• Maximum wrapping height 2200mm
• Maximum turntable speed 12rpm
• Power supply 240V 13A
• Power consumption 1.2kW
• Dimensions (W x D x H) 2400 x 1500 x 2345mm
• Weight 450kg

Consider

Semi-Automatic Wrapper see OPSW001

Ramp for pallet truck loading/unloading see OPSWR

Brand

Optimax

Optimax offer a number of high quality heat sealers, divided into three distinct ranges, PacSeal, ProSeal and OptiSeal. Each product range satisfies varying application criteria, based upon light, medium and heavy duty for both frequent and occasional use.
