Star Medical Vacuum Sealer 600mm

Description

The Star Medical Vacuum sealer has been developed for applications where ease of cleaning is critical, such as in the food, medical and pharmaceutical industries.

The machine body can be built in a number of different designs with the jaws operating vertically (when a product is best sealed laying down) or horizontally (when a product is best sealed standing up). With cylinders moving the top jaw directly, jaw alignment and pressure are much more controllable. With minimal moving parts the Star Medical sealer risks producing no dust particles, unlike continuous rotary style machines, making it ideal for cleanroom operation.

These bag sealing machines are available with all the Star controllers, allowing a wide range of materials to be sealed including polythene bags, laminate ‘stand up’ pouches and PU coated fabrics. With the ARTICS or Medical controller peelable seals can be produced on medical pouch materials such as Tyvek®.

The Star Medical Vacuum pouch sealer allows for the air to be removed from a bag prior to sealing. The machine is available with a range of vacuum pumps or vacuum generators, dependant on your application. Gas flushing is available for modified atmosphere packaging, with multiple vacuum and gas flush cycling available on either timed or measured vacuum and gas levels.

Seal Length:         400mm    600mm    800mm     1020mm
Seal Width:           9mm standard. 6mm, 12.5mm and 20mm options
Jaw Opening:       50mm standard, 25-200mm options
Max Material Thickness:     Over 1000μm (4000g)
Sealing Cycle Time:        Typically 4 – 20s Seal Only, 15 – 45s Vacuum Seal
Power Supply:        230V 50/60hZ Single Phase, 115V Optional
Average Power Consumption / Cycle:        0.01 – 0.03kWh
Average Power:        Weld 1730W, Cool 125W, Standby 250W
Air Supply:        6 – 8 bar Clean Dry Air
Air Consumption / Cycle:        0.525 – 3.5 NI at 6 bar

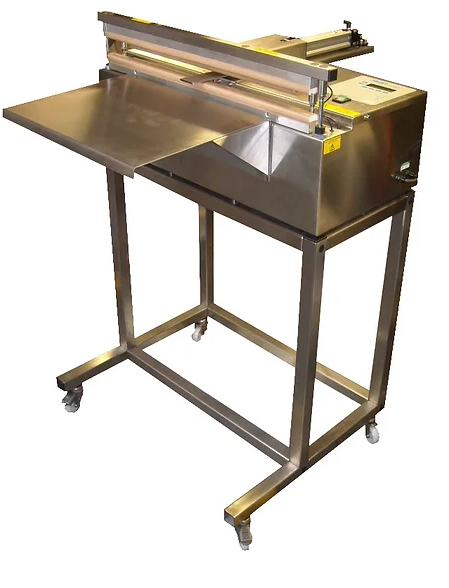

Medical Vacuum Sealer Optional Stainless Steel Stands

• Horizontal stand from £959
• Vertical stand from £1129

Stainless Steel Support Tray from £248

Other options for the Star Medical Vacuum Sealer – Please contact us for pricing:

• Star Medical Seal Cycle Controller Vacuum Machine (Includes Vacuum Level Measurement and Control)
• Electronic Weld Pressure Control
• Twin Panel Push Button Cycle Start with safety relay
• Manual Safety Cutter
• Automatic Cutter
• Parallel Weld for Single Transformer Jaws
• Twin Channel Temperature Control Medical only (For parallel weld machines)
• Air or Water Cooled Jaws
• 115V Operation
• Upgrade to TL10 Vacuum Pump (10 m³/h) Externally Mounted
• Upgrade to TL15 Vacuum Pump (16C m³/h) Externally Mounted
• Gas Flushing
• Data Upload Program
• Calibration Certification for Temperature and Pressure
• On Site Calibration for Temperature and Pressure

This Heat Sealer is configured to order so please contact PackSealer for stock lead time and delivery.
