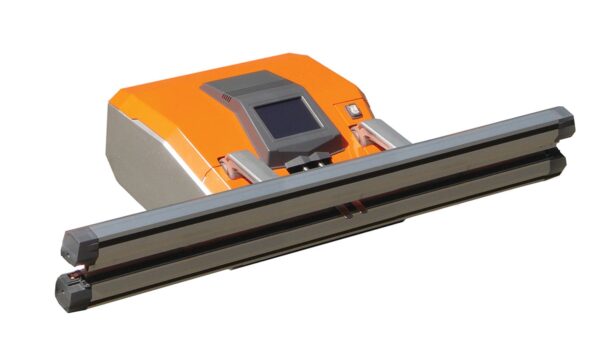

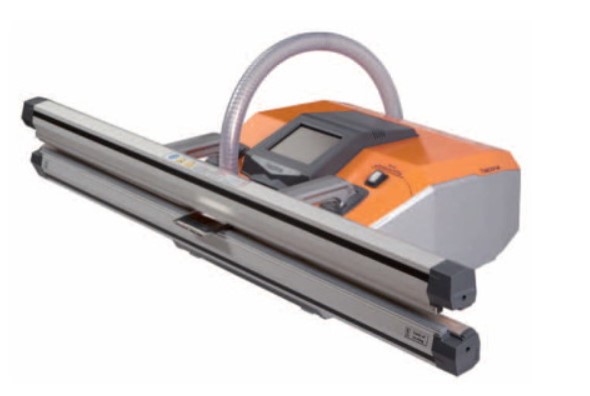

V-Type Vacuum Heat Sealer Control Head with 620mm Bars
Product Code: V-HEAD

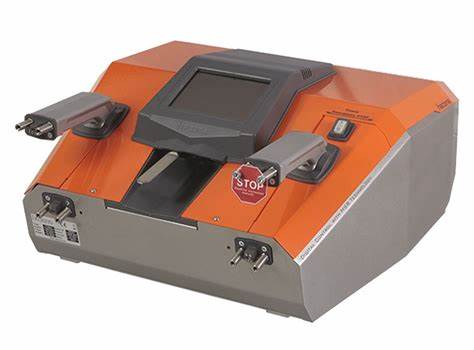

Control unit for the V-Type vacuum impulse heat sealing system
SPECIFICATIONS
- Requires additional interchangeable 420-1320mm sealing bars (sold separately)
- Features pre-seal air evacuation and gas flushing for electronics and pharamceutical industries
- Automatic, foot pedal or manual actuation
- Bi-active upper and lower sealing
- Sensor-activated ejector vacuum pump with vacuum filter
- Water discharge system
- Separate incremental adjustment of primary and secondary evacuation pressures, gas flushing time and sealing/cooling times
- Pneumatic sealing bar closure
- 5.7″ colour LCD touch screen control with user-friendly multilingual menu
- Compatible with any thermosealable laminated products including PET/paper/PE and PET/aluminium/PE
- Power supply 230V 50Hz
- Maximum delivered air pressure 8 bar
- Fitted with 620mm OVT620 Seal Bars

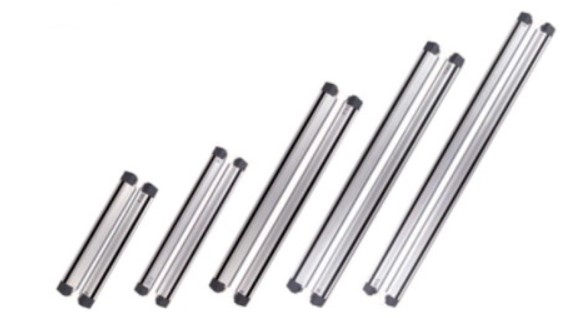

Seal bars available in sizes 420mm 620mm 820mm 1020mm 1320mm
Brand
Optimax
Optimax offer a number of high quality heat sealers, divided into three distinct ranges, PacSeal, ProSeal and OptiSeal. Each product range satisfies varying application criteria, based upon light, medium and heavy duty for both frequent and occasional use.
Additional information
Weight | 30 kg |
---|---|
Seal Length | |
Sealer Type | |
Seal Width | |
Bag Material | Light Duty Thermoplastic, Medium Duty Thermoplastic, Metalised Laminate |
Capacity | |
Feature |
