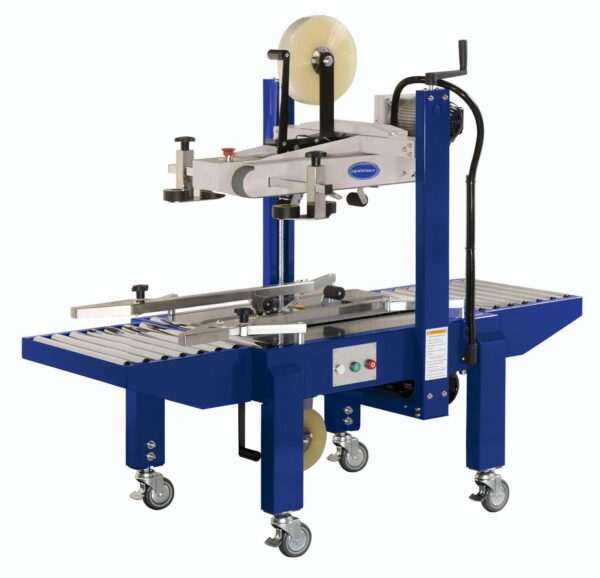

Uniform Case Taper – Semi-automatic top and bottom seal taping of uniform carton sizes

Description

• Best suited to batch sealing of uniform-sized cartons
• Simultaneous top and bottom carton flap sealing
• Increased productivity and a consistently professional finish
• Manual upper sealing head height adjustment
• Adjustable leg height and lockable swivel castors as standard
• Infeed and outfeed roller conveyors
• Easy-loading upper and lower 50mm wide tape heads
• 75mm wide tape heads available on request
• Additional safety guards fitted on request
• Minimum/maximum carton width 150-500mm
• Minimum/maximum carton height 120-500mm
• Minimum/maximum carton length 120mm-unlimited
• Table height 680-880mm
• Belt speed 23 metres per minute, 9-20 cartons/min
• Power supply 240V 50Hz (110v 60Hz available as an option)
• Power consumption 450W
• Dimensions (L x W x H) 1637 x 756 x 1375mm
• Weight 153kg

Consider our Random size case taper (upper tape head auto-adjusts for carton height) – OCT30R

Brand

Optimax

Optimax offer a number of high quality heat sealers, divided into three distinct ranges, PacSeal, ProSeal and OptiSeal. Each product range satisfies varying application criteria, based upon light, medium and heavy duty for both frequent and occasional use.
