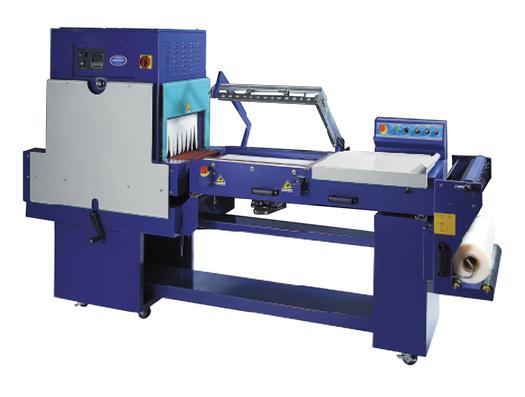

Optimax® L Sealer & Shrink Tunnel -OST455

Description

Heat Shrink L Sealer & Shrink Tunnel -OST455 Optimax®

Separate sealer and shrink tunnel for optimum throughput

• Powerful high-capacity heat sealing
• Extendable weld cooling time
• Maximum film width 600mm
• Maximum film roll diameter 300mm
• Working plate height 900mm from floor
• Maximum sealing dimensions 400 x 550mm
• Maximum package height 150mm
• Tunnel inlet dimensions (W x H) 400 x 200mm
• Requires compressed air supply
• Power supply 400V 50Hz (3 Phase)
• Maximum power consumption 9kW
• Total dimensions (L x W x H) 2570 x 870 x 1600mm
• Total weight 550kg

Spare Parts

Rubber Strip(Short) for OSC45 – Please contact PackSealer

Sealing element for OSC45.        – Please contact Packsealer

Brand

Optimax

Optimax offer a number of high quality heat sealers, divided into three distinct ranges, PacSeal, ProSeal and OptiSeal. Each product range satisfies varying application criteria, based upon light, medium and heavy duty for both frequent and occasional use.
