Which are the best types of Heat Sealers?

Impulse Heat Sealers

Impulse heat sealers are one of the most common types of heat sealers. These have one or two heating elements which are covered by a layer of PTFE or Teflon® fabric type material which prevents the bag sticking to the sealer.The heating elements are not continuously heated; heat is only generated only when the jaws are closed and current flows. When the bag is placed in the impulse heat sealer, the jaws are closed and pressure maintained for the time of the seal (while the light is on). Then pressure is held for about 2 seconds to allow the seal to cool. Normally if your material is a clear (thermoplastic) plastic bag, if it is less than 150µ (600 gauge) and you require to seal two thicknesses then our standard impulse sealers will be suitable.

Hand Impulse Sealers – PSH Range

Hand sealers are great for low usage and in some cases for medium usage they don’t take up much space and can be moved around easily. The seal length is up to 500mm and the seal width is 2mm. These also come with cutters.

Foot Operated Impulse Sealers – PSF Range

Foot pedal operated sealers are great for low-medium usage they allow sealing to be operated with hands free to aid lifting or positioning your product. Most come with a floor stand and the working height is around 70cm so the operator can sit down. The seal width is wider than the hand sealers at 5mm giving a more aesthetic finish.

Double Foot Operated Impulse Sealers (X2)

These sealers have a heating element on both the top and bottom jaws which makes these sealers suitable for thicker material. 150µ to 250µ (600 to 1000 gauge) and some foil pouches or bags.

Automatic Foot Switch Operated Sealer PSB  PSF (A) Range

These sealers are bench top mounted and have a foot switch. These can be set in an automatic mode to open and close at set intervals.

Direct Heat Sealers PSF  (DD) range

The jaws of direct heat sealers or constant heat sealers heat up to pre set temperatures and are better suited for bags and pouches products having different properties and melting points, such as; foils (side gusseted foil coffee pouches), waxed, coated papers, cellophane and polypropylene laminates. These make a deeper seal of 10mm and are crimped for increased strength.

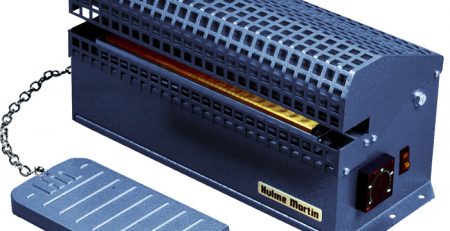

Hulme Martin

UK made sealers HM offer some more specialised sealers for applications such as medical, security, heavy duty.

Audion

European made for specialised applications including the very high automated continuous sealers.

Star Universal

UK made sealers Star offer some more specialised sealers for applications with a precise level of control – such as probe type vacuum sealers, medical, security, heavy duty.

Still not sure which types of heat sealers?

If you still help, give us a call or send us your bags for us to test and we’ll advise the best machine.
